CHANXAN flat bed CO2 laser cutting machine

FOB Reference Price:Get Latest Price
US $7,000-15,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CW-1630
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Cutting Thickness:
Depends
Cutting Area:
1600*3000mm
Cutting Speed:
0-800mm/s
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Ruida
Graphic Format Supported:
AI, BMP, DST, DXP, PLT
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CHANXAN
Certification:
CE, ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Laser power:
80W
Product name:
Laser Cutting Machine
Name:
Leather Cutting Engraving Machine
Function:
Engraving Cutting Nonmetal Materials
Laser tube:
Reci Laser Tube
Model:
CW-1625F
Warranty:
1 Year
Control system:
Ruida LCD DSP Control System
Transmission:
HIWIN Linear Rail
Compatible software:
Core Draw AutoCAD Photoshop
Supply Ability
Supply Ability:
30 Set/Sets per Month Laser cutting bed
Packaging & Delivery
Packaging Details
plywood case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 15 To be negotiated
Product Description

leather belt/ shoe marking/ clothing garment Laser cutting bed

Application

1.Decoration and upholster industry: non-metal materials such as double color board.
2.Art crafts Industry: wood, bamboo, elephant's tusk, bone, leather, marble,sea shell, etc.
3. Advertisement Industry: double color board, acrylic engraving and cutting, label engraving,crystal, etc.
4. Model Industry: sand table construction model, plane model, etc.
5. Packing Industry: rubber engraving, plastic, doubling plate, die board cutting MDF structure, etc.
6. Garment & leather Industry: compound leather,man-made leather,fabric,fur ,toy, etc.

Feature

1)Modern smart design. Put on table and work easily.
2)Stronger frame together with HIWIN square rail, high accuracy.
3)Transparent acrylic watching door, easy checking work process.
4)Independent laser tube cabinet, protect tube and easy change.
5)Stainless steel comb working table, avoid rust.
6)Red cross point offers the highest accuracy position.
7)Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.
8)Humanized closed designed system for top and bottom exhaust, ensures the safety of the processing, worryless whole-process.

LARGE AREA LASER CUTTING FLAT BED
Model
CW-1630
Working area
1600mm*3000mm
Laser power
80W-150W
Cutting speed
0-800mm/s
Reposition accuracy
<0.02mm
Working voltage
220V±10% 50HZ (60HZ)
Cooling mode
enforced water cooling system
Whole machine power
2500W
Whole machine weight
700KG
Dimension
3000mm*2000mm*1050mm
Sample
Certifications

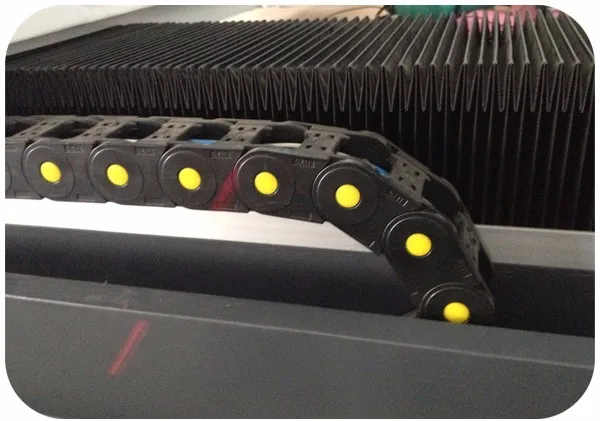

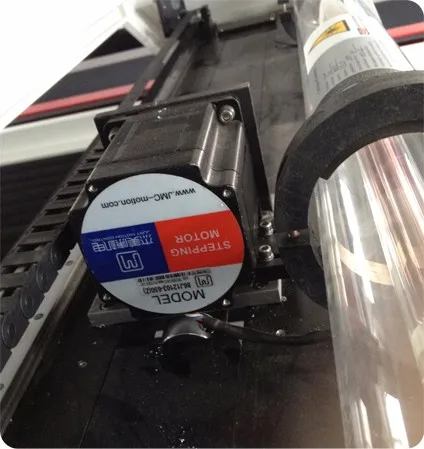

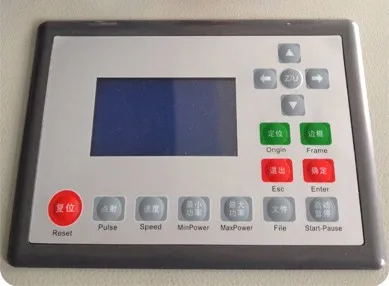

Detailed Images
Packing & Delivery
Our Service

1.Ome years Warrant of the whole machine except the consumption part like mirrors, laser tubes.
2. Specialized  after-sales support every customer once machine reach. help for machine installation and training.
3.Specialized installation video for help customer learn machine installation and operation.
4.We have our own R&D department for design machine ourselves. can as per customer's request for improving machine design to get better and better performance.
5.CE, ISO certificate supported for help customer clear custom.

FAQ

Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.

Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.

Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.
