CHANXAN CCD camera fabric laser cutting machine for nonmetal materials

FOB Reference Price:Get Latest Price
US $4,000-5,000 / Sets | 1 Set/Sets laser cutting machine for cake topper (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Leather, MDF, Paper, plastic, Plywood, Rubber, Wood
Cutting Thickness:
depend on materials
Cutting Area:
1800*1000mm
Cutting Speed:
0-48000mm/min
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
CHANXAN
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CHANXAN
Model Number:
1810S
Certification:
CE, ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Laser power:
80-130W optional
Laser tube:
Co2 Glass Laser Tube
Keyword:
non woven fabric laser cutting machine
Model:
CW-1810S
Function:
ccd camera laser cutting machine
Working area:
1800mmX1000mm
Name:
laser cutting machine for cake topper
Product name:
ccd camera laser cutting machine
Color:
Blue-white
SupplyAbility
SupplyAbility:
100 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
CHANXAN CCD camera fabric laser cutting machine for nonmetal materials will be packed by wooden cases
Port
Any chinese port
Lead Time :
7 DAYS AFTER PAYMENT
Product Description

Product Application

CHANXAN CCD camera fabric laser cutting machine for cake topper.

This type of machine applied to cutting trademark, woven Label, garment leather, clothing toys, computer embroidery cutting, template and paper goods cutting
Applicable materials: leather, fabric, rubber, bamboo and wood, bag and shoes, garment and toys cutting and engraver.

SPECIFICATIONS FOR CHANXAN high CCD camera auto feeding non woven fabric laser cutting machine for textile industry
Model

CW-1810S
Working area
1800*1000mm
Laser power
60-150w optional
Laser type

CO2 glass tube
Engraver speed

0-60000mm/min
cutting speed
0-40000mm/min
Laser energy control
0-100% by software settings
Maximum scanning accuracy
High resoultion Canon SLR camera
Poisitioning accuracy
<0.02mm
Cooling system
water cooling and protection system
Graphic format supported
DXF/PLT/BMP/AL/HML/DST
Net weight
500KG
Drive system
Stepper motor and belt drive system
Machine demension
2400*1650*1130mm
Whole Power
1500W
working condition
Temperature:1-45℃,humidity:5-95℃

Main Features

1, Automatic camera laser cutting, using the third generation of highly intelligent control system, make the camera in high accurate position, with the move of camera and the collaborative role of visual system and computer software, the laser cutting machine will make up for the small extrude for the fabric during the processing, ensure the whole processing is in high accuracy and no mistake
2. This combination of automation and artificial visual technology make sure the machine run more stable, in higher precision and in higher speed: It improves production efficiency in 10%0-20% Which meets the requirements of improving output for all the users.

Detailed Images

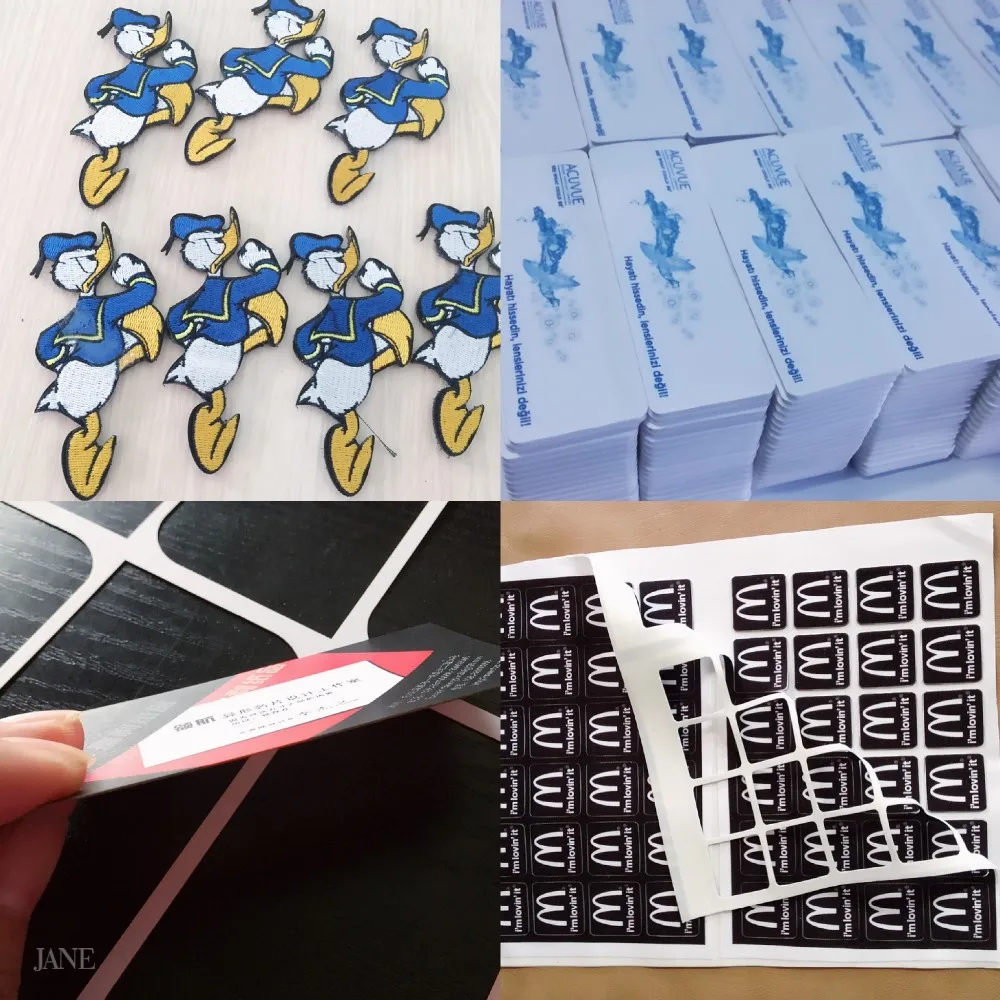

samples
