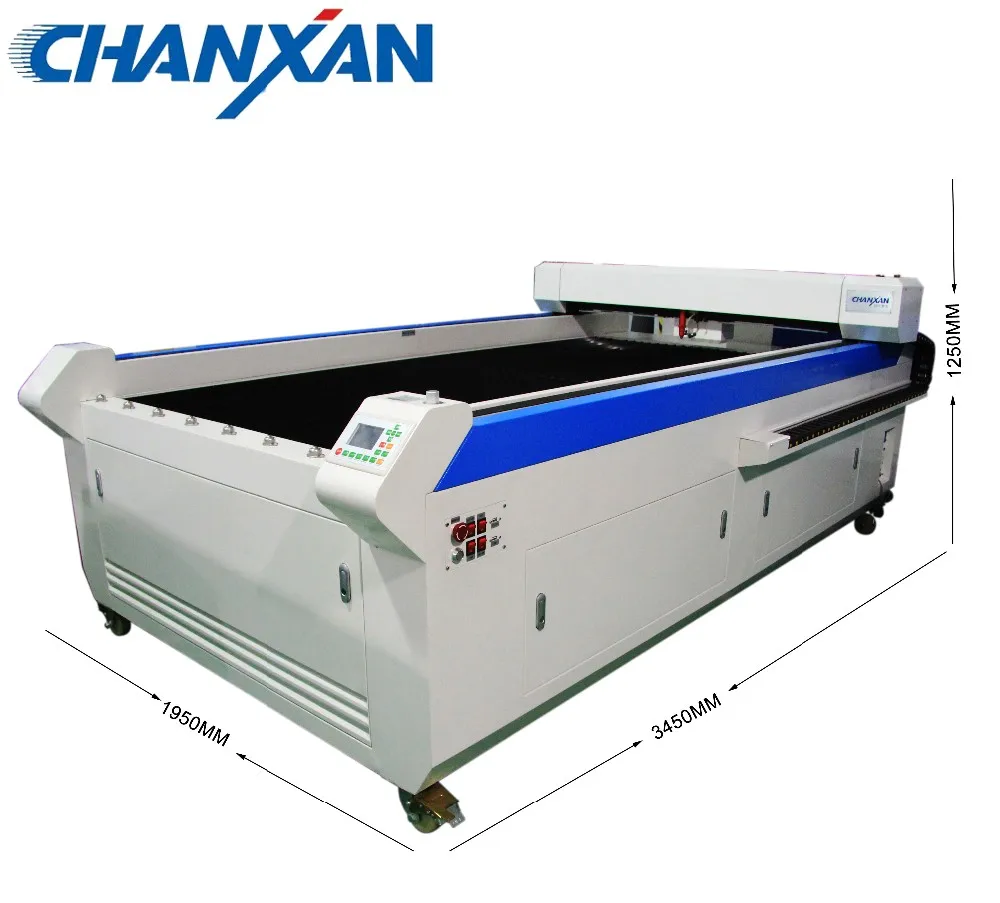

CHANXAN 130w Laser large area laser cutting machine

FOB Reference Price:Get Latest Price
US $7,200-9,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CW-1325
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Wood
Cutting Thickness:
Depends
Cutting Area:
1300*2500mm
Cutting Speed:
0-800mm/s
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
CHANXAN
Graphic Format Supported:
AI, BMP, DST, DXF, PLT, HML
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CHANXAN
Certification:
CE, ISO, CO&FTA&FDA
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
acrylic laser cutting machines price
Model:
CW-1325
Laser tube:
Co2 Glass Laser Tube
Function:
Cutting Nonmetal Materials
Type:
Water Cooling CO2 Laser Cutting Machines
Color:
Blue-white
Working area:
1300mmX2500mm
Laser power:
80W to 300W optional
Keyword:
co2 laser cutting machine
Name:
hand wood cutting machine price
Supply Ability
Supply Ability:
100 Set/Sets per Quarter acrylic laser cutting machines price
Packaging & Delivery
Packaging Details
packed by wooden cases
Port
Any chinese port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 7 To be negotiated
Video Description
Equipement Advantage
This machine can cut acrylic,wood and hard materials.
1.with large format cutting and engraving and scanning functions.
2.Cutting edge fine amd smooth,no sawtooth,compact layout,saving cost.
3Reasonable blow and exhaust,can meet varirty of requirements of processing technical.
4The work area can customized by customer's requirement.

Working area
2500mm*1300mm
Minimum  width of cutting
<0.02mm(vary with different material)
Cutting speed
0-800mm/s
Engraving speed
≤1000mm/s
Cooling mode
enforce water cooling system
Working voltage
AC 110V/220V±10%,50HZ
 Laser power
80-150W
Working temperature
Temperature:1-45℃
Whole power
2500W
Whole machine weight
600KG
Dimension
3000mm*1600mm*1050mm

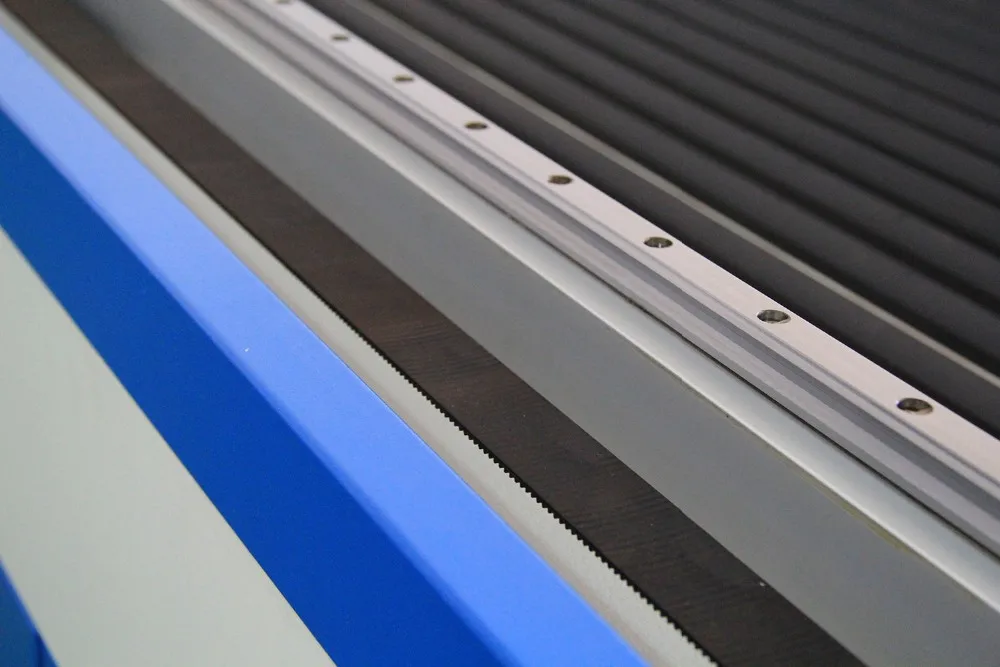

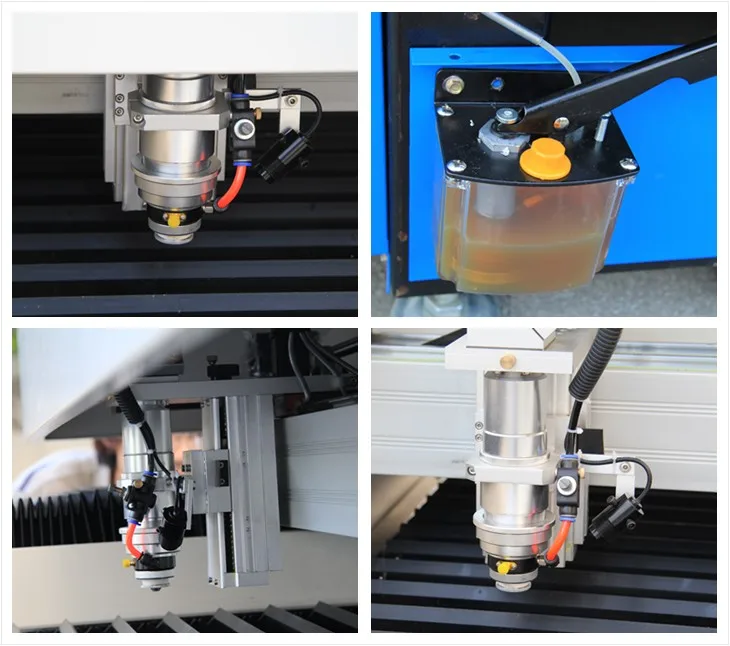

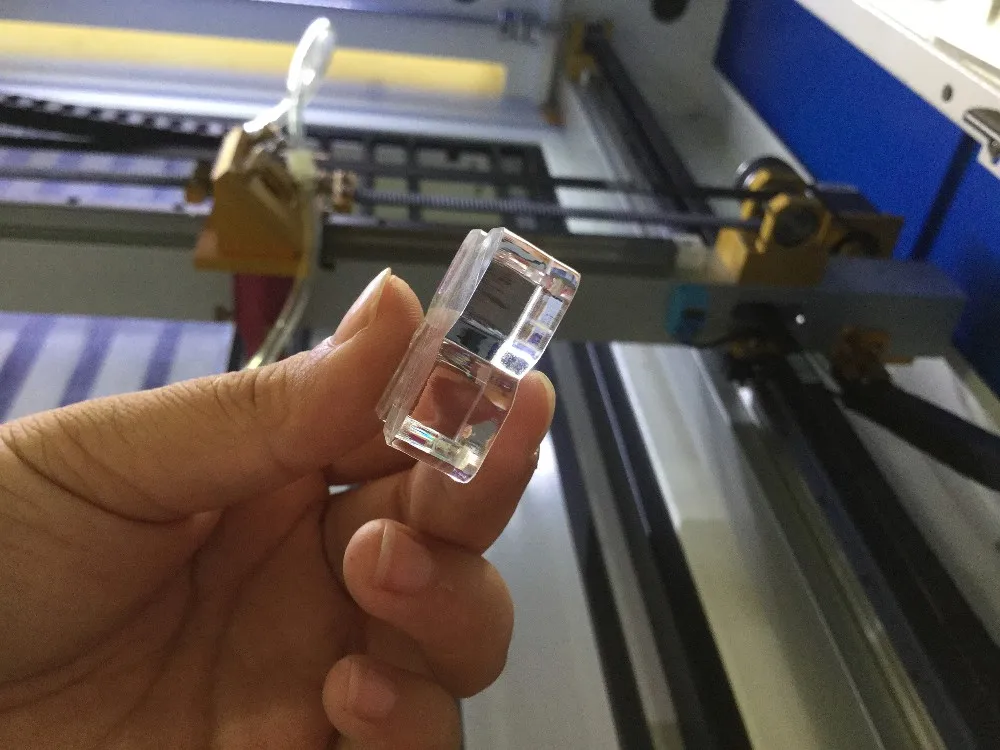

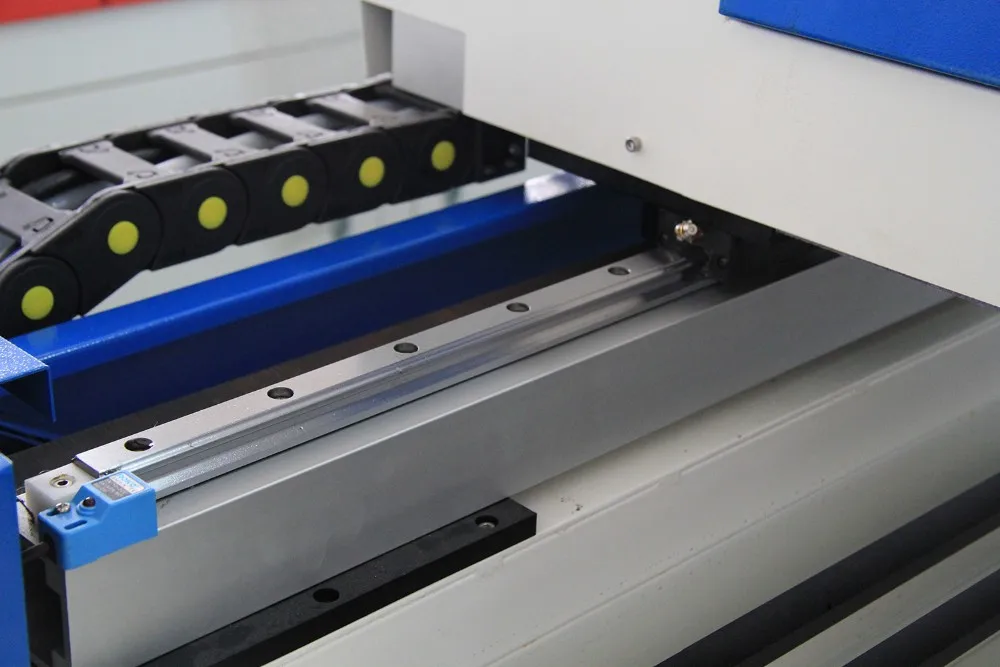

Product Details

Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.

Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.

Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes.


Q. How to maintain the machine?
A: After 3 hours working, it’s better close 10 minutes. B, Keep lens and mirrors clean. C, The water for laser tube should keep clean and lower temperature, in winter you need input antifreeze.

Q. What about MOQ?
A: No MOQ limit ,If you purchase 20sets or more ,we will give you some discount.

Q. Is there any other model for choose?
A:Yes,you can choose other model as your requirement .(According to your material & the size of your material )

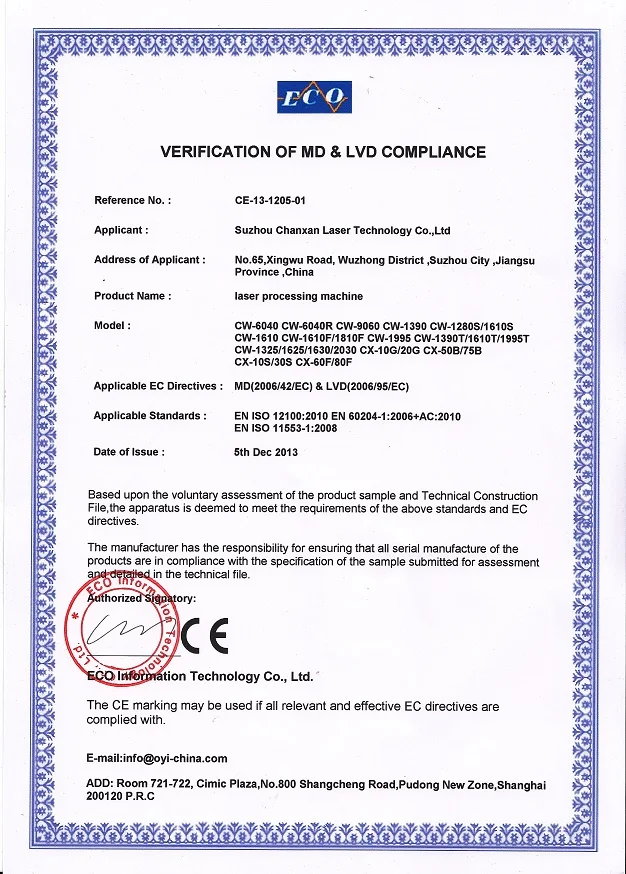

Certification

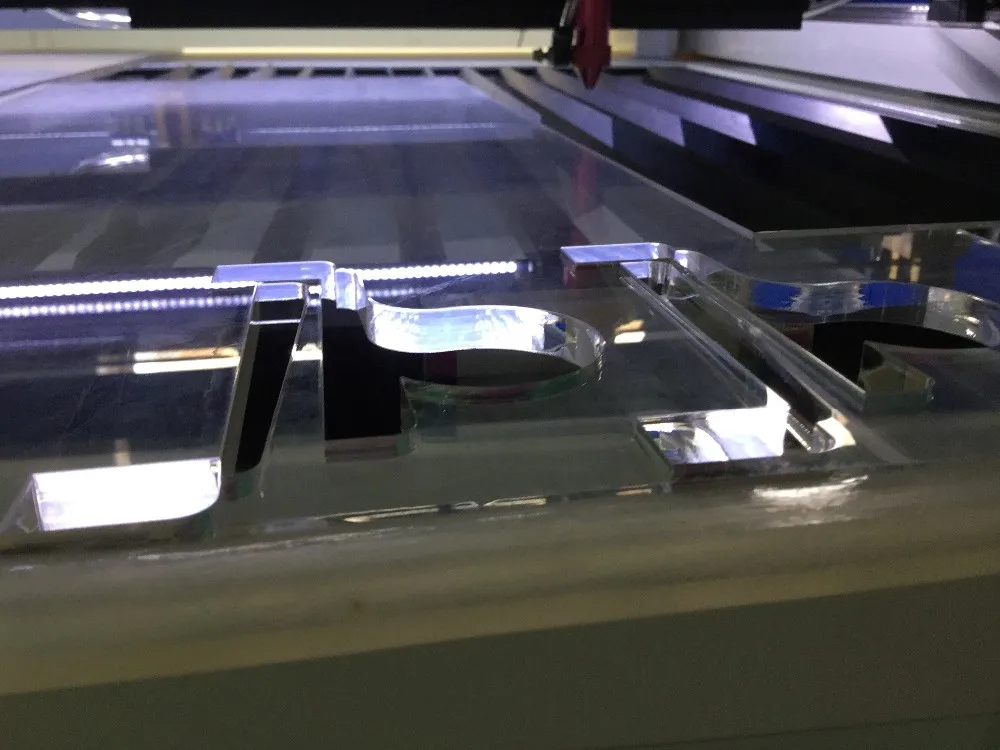

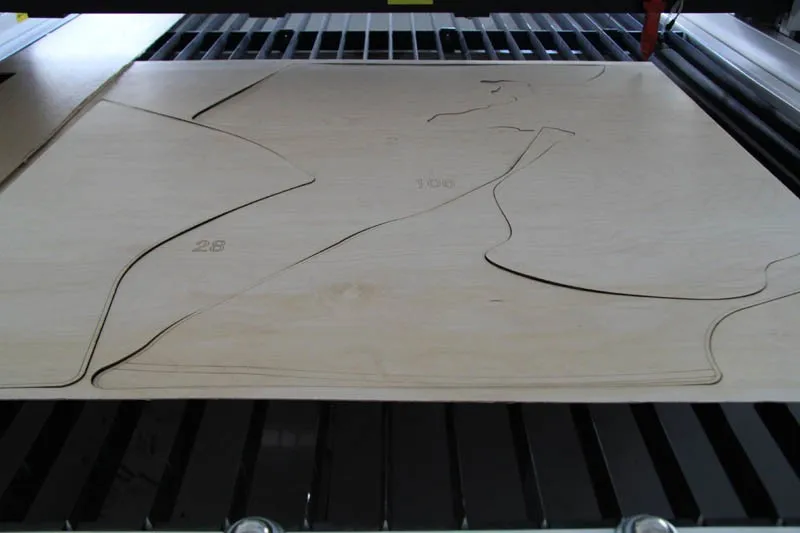

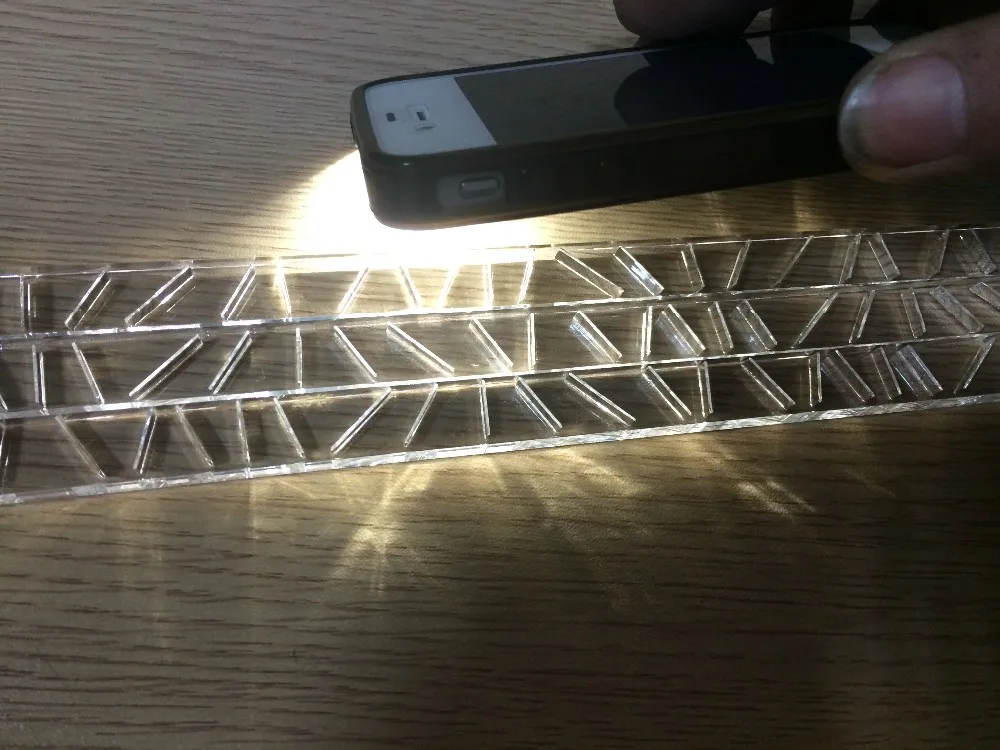

samples
Company Profile


exhibition
Service

Installation Service
Installation Services are available with all CHANXAN machines. We will dispatch technician to The Buyer's factory for installation and preperation of machines.

Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine without material for a few days, and then cut customer's materials for

 test. After making sure machine is the best performance, then ship out the machine.

The whole set of machine guarantee is 1 year. We offer flexible extended warranties to our clients if they

need.
