Chanxan Laser portable laser marking machine for metal

FOB Reference Price:Get Latest Price
US $6,000-8,000 / Set | 1 Set/Sets portable laser marking machine for metal (Min. Order)
Supply Ability:
10 Set/Sets per Week metal laser marking machine
Port:
Shanghai,laser code printer machine
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Marking
Condition:
New
Laser Type:
Fiber Laser
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Control Software:
PLC
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, HML
Working Accuracy:
±0.002mm
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Chanxan
Model Number:
CX30G
Power(W):
30W
Certification:
CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
laser metal marking machine
Applicable Material:
Metal
Laser Power:
30W
Laser source:
Raycus Laser Source
Keywords:
portable laser marking machine for metal
Name:
portable laser marking machine for metal
Marking Speed:
0-7000mm/s
Laser wavelength:
1060nm
Marking Depth:
depend
Warranty:
2 Years
Packaging & Delivery
Packaging Details
Chanxan Laser portable laser marking machine for metal will be packed by wooden case
Delivery Time
within 5-7 days after payment
Video Description
Product Description

Product Application

Chanxan Laser portable laser marking machine for metal

This machine applied on ordinary metal and alloys(iron,steel,copper, aluminum, magnesium, zinc, ect.) rare metals ad alloys(gold, silver, titanium)metal oxide, special surface treatment(phosphate, aluminum anodizing,  plating surface), ABS material and so on.

Model
CX-30G
Laser power
30W
Laser wavelength
1064nm
Repeat frequency
20-80KHz
Engraver speed
≤7000 mm/s
Minimum font
+/-0.15mm
Repeat positioning accuracy
±0.002mm
Control system
Internal air cooling
Power supply
AC 110V/220V ±10%,50HZ
Whole power
500W

Main Features

1) No consumable articles,no pollution, energy saving and environment protectively, meet the criterion of Europe environment protection.

2) Laser cutting system can facilitate modify,jump number, random code and other functions to achieve unique code, suitable for individual processing, having more advantages on small amount with many batches.

3) Line-width can be less than 10um, depth exceeding 10 um, can mark on the surface of parts as small as millimeter level.

4) Simple structure in linear type ,easy in installation and maintation.

5) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

6) High pressure double crank to control the die opening and closing.

Detailed Image

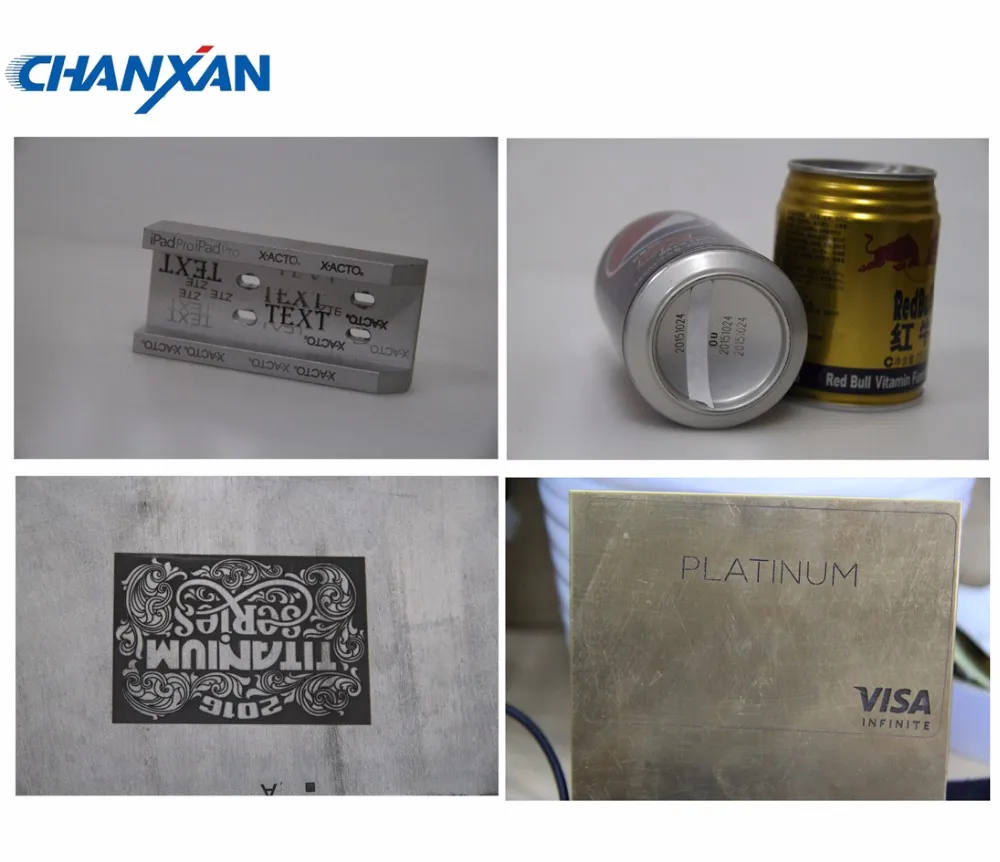

Sample show
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Remote control will be available.

Packing & Delivery

Packing and delivery detail

1.The machine will have a 24 hours  aging test before packing.

2. Chanxan Laser's machine should be cleaned before packing.

3.Inner packing: The machine will be packed by PE film to prevent friction.

4.The machine will be fixed in the wooden case to prevent the machine from being damaged during transportation.

5. Outer packing: The machine will be packed by standard exported wooden case.

Exhibition
FAQ

1 -Does This Machine Pass CE Certificate?
-Yes, this machine not only passed European CE certificate and meet Safety Standard but passed many kind of certifications such as CO,ISO and so on.


2 -How Long Time About Machine Warranty?
-Two years.

3 -Do You Have Agent Or Distributor In Our Country?
-There are so many end-users in your country, and just we are looking for agent in your country, do you have any interest?

4 -How long will it takes to operation this machine.
-This machine is easy to operation, if you know some software about computer it will take you few hours to learn how to operate it.
